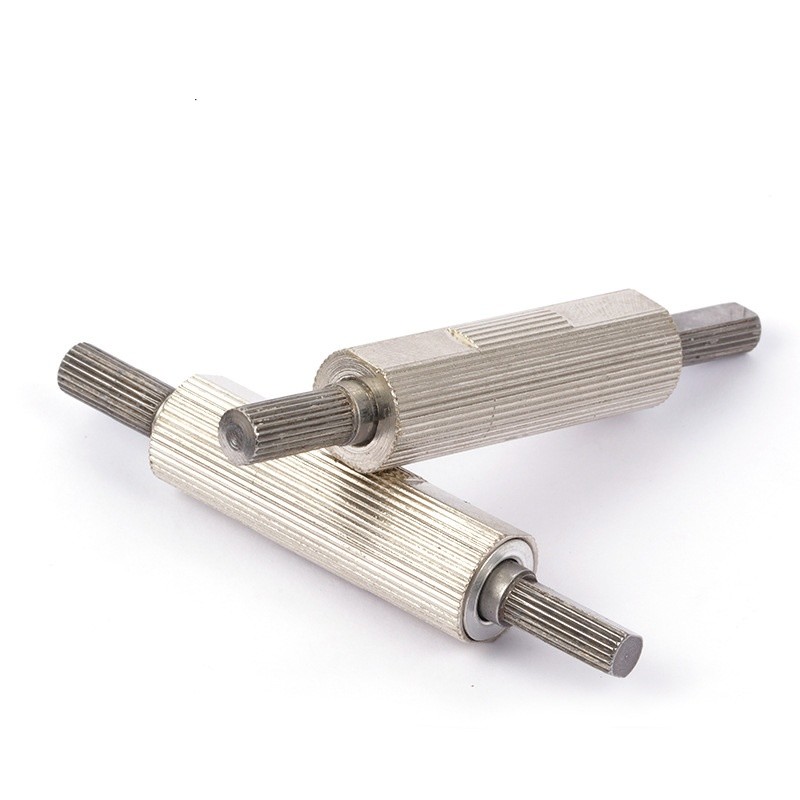

High Torque The Stop - at - Any - Position Rotary Damper for Large Machinery and Equipment

1. Introduction

In the realm of large machinery and equipment, the need for precise control and smooth operation is paramount. A custom stop - at - any - position rotary damper with high torque is a crucial component that addresses these requirements. This specialized damper is designed to provide accurate positioning and reliable torque control, enabling large machinery to operate more efficiently, safely, and with enhanced precision.

2. Key Features

2.1 High - Torque Performance

One of the most outstanding features of this custom rotary damper is its ability to deliver high torque. Engineered to handle the demanding loads associated with large machinery and equipment, it can provide a substantial amount of torque, typically ranging from [Minimum Torque] to [Maximum Torque], depending on the specific requirements of the application. This high - torque capacity ensures that the damper can effectively control the rotation of heavy components, such as large gears, pulleys, or rotating platforms, even under challenging operating conditions.

2.2 Stop - at - Any - Position Functionality

The stop - at - any - position feature is a game - changer for large machinery. This damper allows for precise positioning of rotating parts at any desired angle. Whether it's halting a conveyor belt at a specific point for loading and unloading, or positioning a large robotic arm precisely for a manufacturing task, the damper provides the flexibility to stop and hold the rotation at any position. This is achieved through a sophisticated internal mechanism that offers consistent and reliable resistance, ensuring that the component remains stationary until the next movement is initiated.

2.3 Custom Design

Understanding that large machinery and equipment come in a wide variety of shapes, sizes, and operational requirements, our custom rotary damper is designed to be highly adaptable. Our engineering team works closely with clients to understand their specific needs, including the dimensions of the machinery, the required torque, the range of motion, and the environmental conditions. Based on this information, we create a tailor - made damper that fits seamlessly into the existing machinery design. This custom approach ensures optimal performance and integration, maximizing the efficiency of the overall system.

2.4 Durable Construction

Large machinery often operates in harsh environments, subjecting components to high levels of stress, vibration, and temperature variations. Our custom rotary damper is built to withstand these challenging conditions. The housing is constructed from high - strength, corrosion - resistant materials, such as stainless steel or specialized alloys, which can endure the rigors of continuous use. The internal components, including bearings, gears, and seals, are also made from premium materials and are precision - engineered to ensure long - lasting performance and reliability.

2.5 Smooth and Quiet Operation

In addition to its high - torque and stop - at - any - position capabilities, this rotary damper is designed to operate smoothly and quietly. The internal mechanism is optimized to minimize friction and vibration, resulting in a seamless rotation and reduced noise levels. This is particularly important in applications where noise reduction is crucial, such as in large - scale manufacturing facilities or in machinery used in noise - sensitive environments. The smooth operation also contributes to the overall durability of the damper and the machinery it is integrated with.

2.6 Safety Features

Safety is a top priority in the design of our custom rotary damper. It is equipped with a range of safety features to prevent accidents and ensure the well - being of operators and the integrity of the machinery. These features include overload protection, which prevents the damper from being damaged in case of excessive torque, and emergency stop mechanisms that can quickly halt the rotation in case of an emergency. Additionally, the damper is designed to meet all relevant safety standards and regulations, providing peace of mind to users.

3. Specifications

Model	1012L
Torque	5 - 60kgf. cm
Use Oil	Silicone Oil
Shell Material	Zinc Alloy
Shaft Material	Zinc Alloy
Usage Temperature	- 20 - 70℃

4. Benefits for Large Machinery and Equipment Users

4.1 Enhanced Precision and Control

The stop - at - any - position functionality and high - torque performance of the custom rotary damper significantly enhance the precision and control of large machinery. This allows for more accurate positioning of components, which is crucial in applications such as manufacturing, assembly, and material handling. For example, in a large - scale printing press, the damper can ensure that the printing rollers are precisely positioned, resulting in high - quality prints. In a robotic manufacturing cell, it enables the robotic arm to reach and hold specific positions with great accuracy, improving the efficiency and quality of the manufacturing process.

4.2 Improved Safety

The safety features of the custom rotary damper play a vital role in protecting operators and the machinery. The overload protection and emergency stop mechanisms help prevent accidents and damage to the equipment. In a large construction crane, for instance, the damper's safety features can prevent the crane arm from over - rotating or from being damaged in case of a sudden load change. This not only safeguards the lives of the operators but also reduces the risk of costly equipment repairs and downtime.

4.3 Increased Durability and Reliability

The durable construction of the custom rotary damper ensures that it can withstand the harsh operating conditions of large machinery. This leads to increased durability and reliability, reducing the need for frequent maintenance and replacements. In a mining operation, where large crushers and conveyors are constantly exposed to heavy loads and abrasive materials, the custom damper can provide long - term reliable performance, minimizing downtime and maintenance costs.

4.4 Cost Savings

By improving the precision, safety, and durability of large machinery, the custom rotary damper can result in significant cost savings for users. The reduced need for maintenance and replacements, as well as the prevention of costly accidents and equipment damage, can lead to substantial savings in the long run. Additionally, the enhanced precision can improve the efficiency of the production process, reducing waste and increasing productivity, which also contributes to cost savings.

4.5 Flexibility in Design

The custom design of the rotary damper provides users with the flexibility to integrate it into a wide variety of large machinery and equipment. Whether it's a new installation or a retrofit, the damper can be tailored to fit the specific requirements of the machinery. This allows for more innovative and efficient machinery designs, enabling users to stay competitive in the market.

5. Applications

5.1 Manufacturing Equipment

In manufacturing plants, the custom stop - at - any - position rotary damper is used in a wide range of equipment. For example, in automated assembly lines, it is used to position parts accurately for assembly. In injection molding machines, it can control the rotation of the mold plates, ensuring precise alignment and high - quality molding. In large - scale metalworking machines, such as lathes and milling machines, the damper helps in positioning the workpieces and cutting tools with great precision.

5.2 Construction Machinery

Construction machinery, such as cranes, excavators, and forklifts, also benefit from the use of this custom rotary damper. In cranes, the damper is used to control the rotation of the boom, allowing for precise positioning of the load. In excavators, it helps in controlling the rotation of the cab, enabling the operator to work more efficiently. In forklifts, the damper can be used to position the forks accurately for loading and unloading tasks.

5.3 Material Handling Equipment

Material handling equipment, such as conveyor belts, stackers, and palletizers, also rely on the custom rotary damper for precise control. The damper can stop the conveyor belt at any position for loading and unloading, or it can control the rotation of the stacker or palletizer arms for accurate positioning of the pallets. This improves the efficiency and safety of the material handling process.

5.4 Energy - Generation Equipment

In energy - generation facilities, such as power plants and wind turbines, the custom rotary damper is used to control the rotation of various components. In a power plant, it can be used to position the turbine blades for optimal power generation. In a wind turbine, the damper can control the rotation of the nacelle to face the wind direction accurately, maximizing the energy output.

6. Conclusion

The custom stop - at - any - position rotary damper with high torque is an essential component for large machinery and equipment. Its unique features, including high - torque performance, stop - at - any - position functionality, custom design, durable construction, smooth and quiet operation, and safety features, make it an ideal choice for enhancing the precision, safety, and efficiency of large - scale machinery. Whether in manufacturing, construction, material handling, or energy - generation applications, this custom damper provides a reliable and effective solution for controlling the rotation of heavy components. Contact us today to learn more about how our custom rotary damper can meet your specific requirements and improve the performance of your large machinery and equipment.
