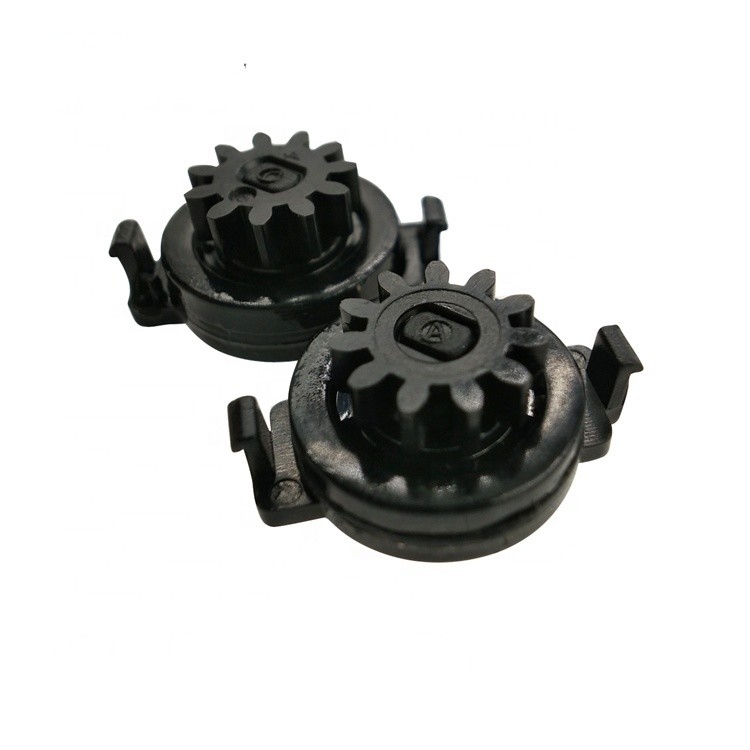

Product Introduction

Key Features

360 Degree Rotation

• The ability to rotate a full 360 degrees sets this damper apart. It provides unrestricted movement in a circular motion, allowing for enhanced functionality in various mechanisms. For example, in a rotating display stand, it enables seamless and continuous rotation, presenting products or information from all angles. In a pivoting door or access panel, the 360 degree rotation allows for easy opening and closing from any direction, eliminating the need for complex hinge configurations. The rotation is smooth and controlled, ensuring a consistent and reliable motion throughout the entire range.
• This wide rotation range also offers greater design flexibility. It can be integrated into innovative product designs where circular or multi-directional movement is desired, adding a unique aesthetic and functional element.

Oil Damping System

• The oil damping system is a core feature of this rotary damper. It utilizes a fluid-filled chamber and a piston mechanism. As the damper rotates, the oil is displaced in a regulated manner, gradually slowing down the speed of rotation. This results in a smooth and quiet movement, eliminating any jerky or sudden stops. The viscosity of the oil can be adjusted to match the specific requirements of different applications. For a more delicate and slow rotation, a lower viscosity oil can be used, while a higher viscosity oil provides a stronger damping force for heavier or faster-moving components.
• The oil damping system also provides a consistent feel and performance over time. It is designed to withstand repeated use and maintain its effectiveness, ensuring reliable operation in both short-term and long-term applications.

Plastic Rotary Design

• The plastic construction of this damper offers several advantages. Firstly, plastic is lightweight, which is crucial in applications where weight is a concern. It helps to reduce the overall load on the rotating system and can contribute to energy efficiency in some cases. Secondly, plastic is highly resistant to corrosion and rust, ensuring a long service life even in environments where moisture or chemicals may be present. The plastic material is also durable and can withstand the rigors of repeated use. It is engineered to maintain its shape and performance over time, providing reliable operation.
• The rotary design allows for a seamless integration into various mechanisms. The smooth surface of the plastic and the precise engineering of the rotary components ensure a frictionless and efficient rotation.

Customizable Design

• This rotary damper offers a high level of customizability. The torque output can be adjusted to match the specific needs of different applications. Whether it's a small and lightweight component that requires a minimal amount of resistance or a large and heavy object that demands a significant damping force, the damper can be tailored accordingly. The overall dimensions and appearance of the damper can also be customized. It can be designed to fit into specific spaces or to match the aesthetic of a particular product. The mounting options and connection points can be modified to ensure easy and secure installation onto the mating components.
• Additionally, the color and finish of the plastic can be selected to blend in with the surrounding design or to create a unique visual impact.

Specification Details

• Model No.	Torque Range	Rotation Direction	Rotary Shaft Materia	Use Oil	External Diameter	Dividing Dia.	Gear No.	Modulus	Pressure Angle	Life cycle
  HIE- T033	20-250GF.CM	360°	POM	Silicone Oil	∅ 10.4	∅ 8.8	11	0.8	20°	50000 time

Application Scenarios

• Ideal for use in display fixtures, such as rotating display shelves in retail stores, museums, or exhibition halls. It allows for a smooth and controlled rotation of the displayed items, enhancing the visual experience.
• Suitable for furniture, like rotating tables or chairs with a 360 degree swivel. The oil damping provides a comfortable and quiet movement, while the plastic construction is durable and lightweight.
• Can be used in industrial equipment, such as the rotating parts of machinery or access panels that require controlled rotation and a durable damping solution.
• Also applicable in some electronic devices, such as the hinges of convertible laptops or the rotating mechanisms of cameras, where a smooth and adjustable rotation is needed.

Installation and Maintenance

• Installation: The installation process is straightforward. The damper is attached to the rotating shaft or component using simple screws or clips, depending on the specific design. Clear installation instructions are provided to ensure proper alignment and connection.
• Maintenance: Regular inspection of the damper for any signs of wear, such as leakage of oil, damage to the plastic housing, or loose parts, is recommended. If any issues are detected, the damper can be easily replaced. Cleaning the damper with a mild detergent and a soft cloth is sufficient to keep it in good working condition.
