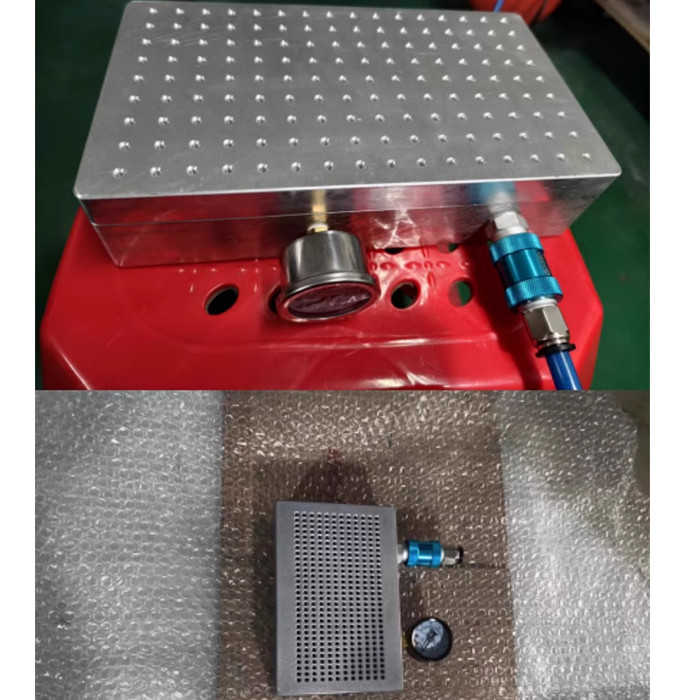

Vacuum Chuck Plate Fixtures for CNC Milling Machine Vacuum Suction Cup

In the realm of CNC milling, precision and secure workpiece holding are paramount. Vacuum chuck plate fixtures with vacuum suction cups have emerged as an innovative solution to meet these demands. These fixtures offer a range of features and specifications that make them highly effective in various milling applications.​

Product Features​

Secure Vacuum Hold​

The primary feature of these fixtures is their ability to create a strong vacuum hold. When connected to a vacuum source, the suction cups on the chuck plate rapidly draw air, creating a low - pressure area beneath the workpiece. This pressure differential between the top and bottom of the workpiece presses it firmly against the chuck plate. The result is a secure hold that can withstand the significant forces generated during CNC milling operations, such as high - speed cutting and aggressive machining.​

Adaptability to Different Workpieces​

Vacuum chuck plate fixtures are highly adaptable. The suction cups can be arranged in various configurations on the plate to accommodate different workpiece sizes and shapes. Whether it's a small, intricate component or a large, flat - surface workpiece, the fixture can be customized to provide a stable and secure hold. Some fixtures come with modular suction cup units that can be easily added or removed, allowing for quick adjustments based on the workpiece requirements.​

Non - Marking and Gentle Clamping​

Unlike traditional clamping methods that may leave marks or damage the workpiece surface, vacuum chuck plate fixtures with suction cups offer a non - marking and gentle clamping solution. The soft material of the suction cups, typically made of rubber or a similar flexible polymer, conforms to the shape of the workpiece without scratching or deforming it. This is especially important when working with delicate materials or workpieces that require a pristine surface finish, such as in the electronics or jewelry industries.

2. Specifications

Specification	Magnetic attraction	Width (mm)	Length (mm)	Height (mm)	Weight (kg)
150*150	≥40KG	150	150	80	13.5
150*300	≥40KG	150	300	80	27
150*350	≥40KG	150	350	80	31.5
150*400	≥40KG	150	400	80	36
200*200	≥40KG	200	200	80	24
200*300	≥40KG	200	300	80	36
200*400	≥40KG	200	400	80	48
200*500	≥40KG	200	500	80	60
250*500	≥40KG	250	500	80	75
300*300	≥40KG	300	300	80	54
300*400	≥40KG	300	400	80	72
300*500	≥40KG	300	500	80	90
300*600	≥40KG	300	600	80	108
300*800	≥40KG	300	800	80	144
400*400	≥40KG	400	400	80	96
400*500	≥40KG	400	500	80	120
400*600	≥40KG	400	600	80	144
400*800	≥40KG	400	800	80	192
500*500	≥40KG	500	500	80	150
500*600	≥40KG	500	600	80	180
500*800	≥40KG	500	800	80	240
600*800	≥40KG	600	800	80	288
600*1000	≥40KG	600	1000	80	360

Applications​

In CNC milling, vacuum chuck plate fixtures find applications in a wide range of industries. In the aerospace industry, they are used to hold aircraft components made of lightweight yet strong materials like carbon fiber composites. The non - marking and secure hold of these fixtures ensure that the delicate components are not damaged during machining. In the automotive industry, they are employed for milling engine parts, transmission components, and body panels. The adaptability of the fixtures allows for quick changeovers between different workpiece types, increasing production efficiency. Additionally, in the prototyping and small - batch manufacturing sectors, the ability to customize the fixture for various workpiece geometries makes vacuum chuck plate fixtures a popular choice.​

If you're looking to enhance the precision and efficiency of your CNC milling operations, our vacuum chuck plate fixtures could be the perfect solution. Whether you have questions about customization, need assistance with installation, or want to explore how these fixtures can be tailored to your specific requirements, our team of experts is here to help. Contact us today, and let's start a conversation about how we can optimize your milling processes.
