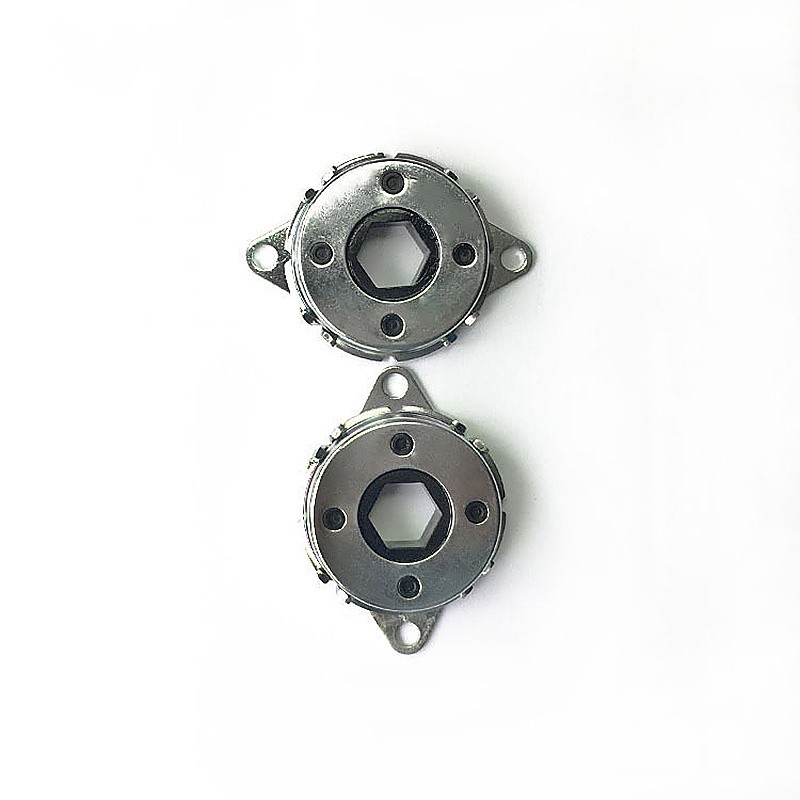

Low Cost Metal Disk Rotary Damper: The One - Way Damper Solution

In the complex world of mechanical engineering, the need for precise motion control and reliable damping mechanisms is ever - present. The metal disk rotary damper, specifically the one - way variant, has emerged as a crucial component in a wide range of applications. This type of damper combines the strength and durability of metal construction with the functionality of one - way rotation control, offering unique advantages in various mechanical systems.

1. Understanding the Basics of Metal Disk Rotary Dampers

Construction and Material

The metal disk rotary damper is constructed with a series of metal disks, typically made from high - quality metals such as stainless steel or hardened alloys. These metals are chosen for their excellent mechanical properties, including high strength, resistance to wear and tear, and corrosion resistance. The disks are stacked within a housing, which is also made of a durable material, often metal, to ensure a secure and stable enclosure. The housing is designed to allow the disks to rotate relative to each other while maintaining proper alignment and preventing any external contaminants from interfering with the damper's operation.

Working Principle

The working principle of the metal disk rotary damper is based on the friction generated between the metal disks. When a rotational force is applied to the damper, the disks start to rotate. As they do so, the surfaces of the disks rub against each other, creating friction. This friction converts the kinetic energy of the rotation into heat energy, effectively dissipating the energy and slowing down the rotation. The amount of friction, and thus the damping force, can be adjusted by changing various factors such as the number of disks, the surface roughness of the disks, and the pressure applied between the disks.

Specifications

• Model	R6301
  Torque	0.5 - 10 Nm
  Use Oil	Silicone Oil
  Shell Material	SGCC
  Shaft Material	POM
  Usage Temperature	- 20 - 70℃
  Max Use Angle	360°

2. The Significance of One - Way Operation

Controlling Rotational Direction

The one - way feature of the metal disk rotary damper is highly valuable in applications where it is necessary to restrict rotation to a single direction. For example, in conveyor systems, a one - way damper can be used to ensure that the conveyor belt moves in only one direction. This prevents any reverse movement that could lead to jams, product spills, or damage to the conveyor system. In automotive engines, one - way dampers can be used in certain components to control the rotation of shafts, ensuring that power is transmitted in the correct direction and preventing any backflow of energy that could cause inefficiencies or damage to the engine.

Protecting Mechanical Components

One - way dampers also play a crucial role in protecting mechanical components from excessive stress or damage. In machinery that is subject to sudden impacts or vibrations, a one - way damper can absorb the energy of these forces when they occur in the non - allowed direction of rotation. For instance, in a power tool, if there is a sudden jolt or kickback, the one - way damper can prevent the motor shaft from rotating in the wrong direction, protecting the motor and other internal components from potential damage. This not only extends the lifespan of the components but also reduces the need for frequent repairs and replacements, leading to cost savings in the long run.

3. Applications in Different Industries

Industrial Machinery

In industrial settings, metal disk rotary one - way dampers are used in a variety of machinery. In manufacturing plants, they can be found in assembly line equipment, where they help to control the movement of robotic arms or conveyor belts. In heavy - duty machinery such as cranes or excavators, one - way dampers are used to ensure that the rotation of the boom or the digging arm is restricted to the desired direction, enhancing safety and efficiency. The high - strength metal construction of the damper allows it to withstand the large forces and vibrations typically encountered in industrial applications.

Automotive Industry

The automotive industry also benefits from the use of one - way metal disk rotary dampers. In the engine, as mentioned earlier, they can be used to control the rotation of shafts and protect components from backflow of energy. In the transmission system, one - way dampers can help in smooth gear shifting by ensuring that the rotation of the gears is in the correct direction. Additionally, in some automotive accessories such as sunroofs or adjustable seats, one - way dampers can be used to control the movement, providing a more reliable and user - friendly operation.

Consumer Products

Even in consumer products, one - way metal disk rotary dampers have their place. In power tools like drills or circular saws, the damper can prevent the bit or blade from rotating in the wrong direction in case of a sudden stall or jam, protecting both the tool and the user. In some types of furniture, such as swivel chairs or adjustable tables, one - way dampers can be used to control the rotation, allowing for a more stable and controlled movement. The durability and reliability of the metal disk rotary damper make it suitable for use in consumer products, which are often used frequently and may be subject to various types of stress.

4. Advantages of Metal Disk Rotary One - Way Dampers

Durability and Longevity

The use of high - quality metals in the construction of the damper ensures its durability and long - life. Metal is highly resistant to wear and tear, and the design of the damper, with its stacked disk configuration, distributes the forces evenly, reducing the stress on individual components. This means that the damper can withstand repeated use and harsh operating conditions without significant degradation in performance. In applications where the damper is exposed to dust, moisture, or high temperatures, the corrosion - resistant properties of the metal also contribute to its longevity.

Precise Damping Control

The metal disk rotary damper offers precise control over the damping force. By adjusting factors such as the number of disks, the surface finish of the disks, and the pressure between them, manufacturers can fine - tune the damper to meet the specific requirements of different applications. This level of precision is crucial in applications where the rotation needs to be controlled with a high degree of accuracy, such as in precision machinery or in some medical equipment where smooth and controlled movement is essential.

Compact and Space - Efficient Design

The design of the metal disk rotary damper is relatively compact, making it suitable for applications where space is limited. The stacked disk arrangement allows for a high - performance damping mechanism to be housed in a small footprint. In automotive engines, where space is at a premium, the compact size of the damper enables it to be integrated into tight spaces without sacrificing performance. In consumer products, such as small - sized power tools, the space - efficient design of the damper allows for a more ergonomic and lightweight product design.

5. Maintenance and Installation

Installation Process

Installing a metal disk rotary one - way damper is a relatively straightforward process. The damper typically comes with mounting brackets or holes that are designed to fit standard mechanical interfaces. In most cases, it can be easily attached to the relevant components using bolts, screws, or other fastening methods. The installation may require some basic mechanical skills and tools, such as a wrench or a screwdriver. In some applications, where the damper needs to be integrated into a more complex mechanical system, professional installation may be recommended to ensure proper alignment and functionality.

Maintenance Requirements

Maintenance of the metal disk rotary damper is minimal. Due to its robust metal construction and simple design, there are few moving parts that are prone to failure. However, periodic inspections are advisable to check for any signs of wear, corrosion, or misalignment. In some cases, if the damper is used in a particularly dirty or harsh environment, it may be necessary to clean the disks or the housing to remove any accumulated debris. Additionally, if the damping performance of the damper starts to degrade over time, it may be possible to adjust the pressure between the disks or replace some of the disks to restore its performance.

6. Conclusion

The metal disk rotary one - way damper is a versatile and reliable component in mechanical engineering. Its ability to provide precise one - way rotation control, combined with the durability of metal construction, makes it suitable for a wide range of applications across different industries. Whether it's in industrial machinery, automotive components, or consumer products, the one - way metal disk rotary damper offers unique advantages in terms of performance, durability, and space - efficiency. If you are involved in mechanical design, manufacturing, or maintenance, considering the use of this type of damper can enhance the functionality and reliability of your products or systems. Reach out to our team of experts to explore how the metal disk rotary one - way damper can be customized to meet your specific requirements and take your mechanical designs to the next level.
